FractalPark
Function composition

ifthen-b1

0236be89-f1e9-5e23-b0a3-f4dd201ee788

Teaching overview

ifthen-b1’s FRM-like/1 source initializes both z and anchor from pixel. One iteration applies fn1 to z and adds anchor, then applies fn2 to that new z and adds anchor again. Its strict bailout is |z| < 4.

Source walkthrough

  1. frm-v1:373c7bfd6f8f05a21f9e9af35ea4c77fa92b6f63e3c3484f760a2ef3c03de052:init/1

    This initialization assignment sets anchor = pixel; z is also initialized from pixel by the preceding assignment.

  2. frm-v1:373c7bfd6f8f05a21f9e9af35ea4c77fa92b6f63e3c3484f760a2ef3c03de052:loop/0

    This first loop assignment sets z = fn1(z) + anchor.

  3. frm-v1:373c7bfd6f8f05a21f9e9af35ea4c77fa92b6f63e3c3484f760a2ef3c03de052:loop/1

    This second loop assignment takes the already updated z and sets z = fn2(z) + anchor.

  4. frm-v1:373c7bfd6f8f05a21f9e9af35ea4c77fa92b6f63e3c3484f760a2ef3c03de052:bailout

    The strict termination test allows continuation only when |z| < 4.

Syntax features

source-sequence

The second transform consumes the z produced by the first transform, with anchor added at both steps.

Parameter experiment

firstsecond

Steps

  1. Use first = identity and second = identity at the pinned profile. Keeping the view and all other settings fixed, change only first to sqr and render; restore it, then change only second to sqr and render.

What to observe

For each transform trial, record a visible difference or no visible difference from the identity baseline.

Exercise

Show why the second transform sees the first transform’s result, then compare one identity-to-sqr trial.

Completion check

Your response explains all 4 annotated operations, records the requested comparison, and mentions `fn1(z)` and `fn2(z)`.

Sources and rights

Pinned runtime revision 373c7bfd6f8f05a21f9e9af35ea4c77fa92b6f63e3c3484f760a2ef3c03de052 and its publication decision ground this unit.

rightsStatus: no-explicit-permission; implementationBasis: separated-independent-rewrite; publicationDecision: publish; decisionReason: publish-cleanroom-independent-rewrite-full-chain-green. This statement makes no broader claim about any third-party original.

Formula Record

ifthen-b1

This canonical FractalPark implementation is published and runnable.

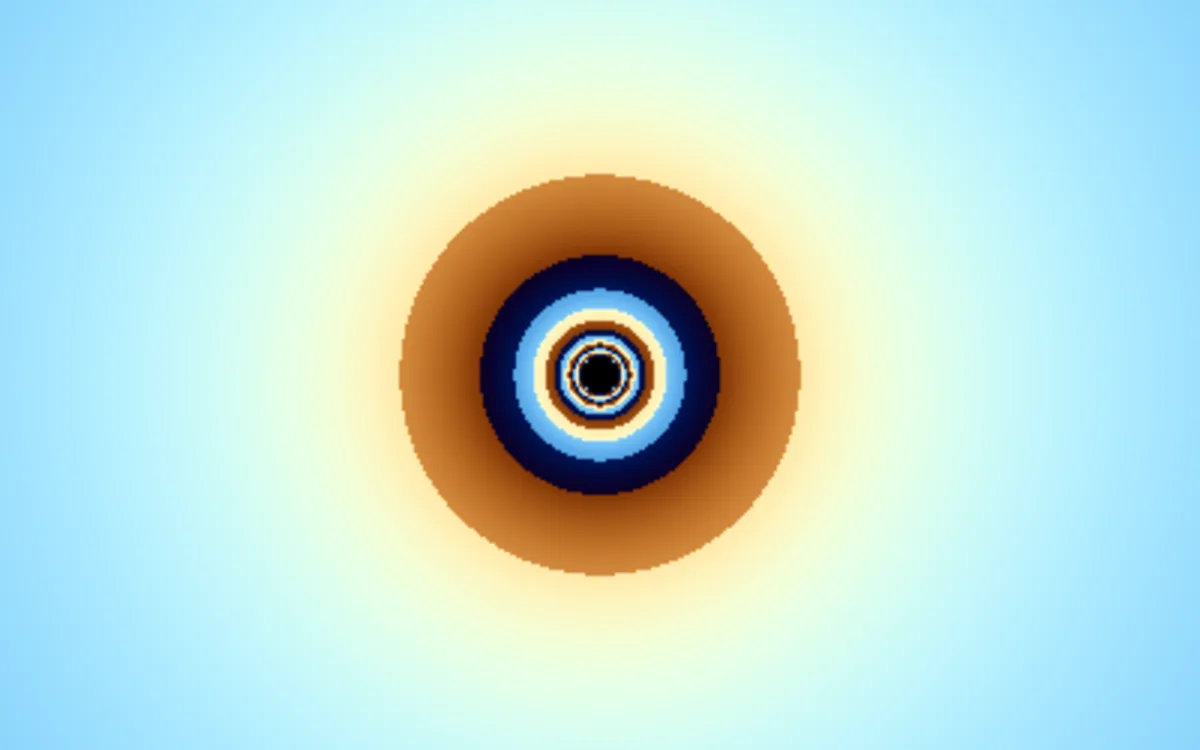

Deterministic preview of ifthen-b1

Canonical source

Language
frm-like/1
Standard library
1
Profile mode
parameter-plane
Profile center
0, 0
Profile zoom
0.25
Profile iterations
96
Profile evidence
family

Parameters

  • first: function
  • second: function
Open in Explorer

Canonical source

This verified canonical revision is read-only. Remix creates a separate editable fork.

Loading canonical source…

Source and implementation

Formula ID
0236be89-f1e9-5e23-b0a3-f4dd201ee788
Canonical name
ifthen-b1
Original name
ifthen-b1
Historical source
Iterated Dynamics
Current implementation
Separated independent rewrite

Historical source: Iterated Dynamics, a successor to Fractint. The current FractalPark implementation is a separated independent rewrite; the original FRM text is not redistributed.
